SERT Data Recovery has the right equipment, experience, and price to recover your photos and other recorded media from your Compact Flash cards. Your memories are precious and valuable, you need a company you can trust, who will protect them as well as your privacy.

How SERT recovers Compact Flash Cards

Compact Flash (CF) cards use use NAND memory chips to store your pictures and other data on. These come in two form factors of chips: TSOP48 and BGA (Ball Grid Array).

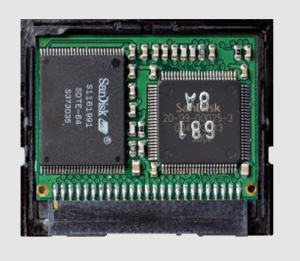

bga-nand-chip-cf-card-recovery tsop48-nand-cf-card-and-controller-chip

SERT doesn’t always have to pull the card apart and pull the NANDs off to recover data from these flash devices. Because of our advanced recovery hardware, and the style of data transfer CF cards communicate with, there are times where we can recover your files without having to disassemble your card.

If recovery is not possible through these means, removing the individual NAND chips is the only solution. This entails heating up the NANDs to a temperature that will not damage them, and removing them from the PCB board within the casing.

These chips are then put on our NAND dump device which will then be used to “dump” the raw data from the chips.  Our engineers will at that time work to reverse engineer the encryption and error correcting algorithms to compile and make sense of your data. Our engineers will essentially be using advanced recovery equipment and software utilities not available to the public to put your pictures and files back together like a puzzle.

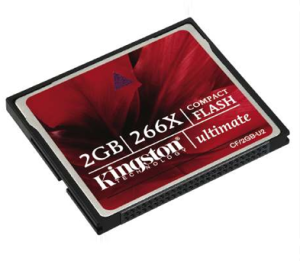

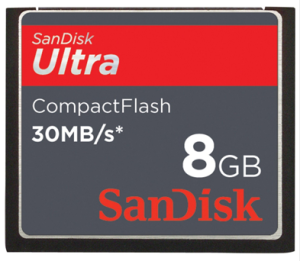

sandisk-data-recovery-cf-card kingston-cf-card-data-recovery

An Overview Of Compact Flash Drives

Among the many different storage technologies that have been developed for use with portable electronic devices, CompactFlash has been one of the most long-lasting and perennially popular options. These humble little storage cards have been used in digital cameras and other devices for more than twenty years, and their useful lifetime is still far from over.



How Compact Flash Cards Work

CompactFlash is one of the earliest formats designed for non-volatile flash memory intended for use as a storage medium in portable electronics. It was originally designed and produced by SanDisk, starting in 1994. Over the next twenty years, CompactFlash has evolved continuously, and it remains a viable storage format to the present day.

Like a lot of flash-based storage technologies, CompactFlash is based on NAND flash memory. In contrast to newer formats, though CompactFlash was originally designed to use the less-dense alternative, NOR-based memory. This made the original design of CompactFlash cards relatively large. As memory density has increased, this large size has actually become an advantage, allowing manufacturers to cram more and more space onto CompactFlash cards.

CompactFlash cards use the same standard ATA interface as computer hard drives. This is another smart design choice which has expanded the useful life of the format and given CompactFlash cards considerable flexibility. When properly programmed, CF cards can be used as small solid-state hard drives. The CF card pin setup is a scaled-down version of the PCMCIA interface connection used for adding cards to laptops, and CF cards can be mounted directly on many PCMCIA connectors.

The storage architecture of the CompactFlash specification makes it theoretically possible to store and address up to 128 petabytes of data, although hardware has not reached this point yet. The best CompactFlash cards on the market today store no more than 256 (in a few cases 512) gigabytes.

Video And Photo Cameras That Use Compact Flash

Camera manufacturers are particularly enamored of the high storage capacities and fast transfer speeds offered by the CompactFlash format. This means that capturing and storing high-resolution images and video presents little challenge for cameras that use CF cards, and some of the most high-powered models even use multiple CF cards to provide extra storage space. (Note that for capturing high-definition video, a new version of the CF standard – the XQD card – has been introduced to deliver even higher data transfer speeds.)

High-end camera makers including Nikon and Canon use CompactFlash as their preferred storage media in their best cameras. Other makers such as Sony, Fujifilm, Kodak, Leica, and Pentax also use CF cards.

Benefits And Drawbacks To Using Compact Flash

As described above, the ever-growing storage capacity of CompactFlash cards has kept them relevant and useful for more than twenty years. The great flexibility inherent in the CompactFlash format makes CF cards widely useful in an array of different applications.

They are as reliable as any flash-based storage media, and their larger size when compared to other flash storage cards is actually considered to be an advantage by some users. (CF cards are harder to lose than smaller cards.) It is a genuine drawback when it comes to the very smallest devices, though. Very small cameras and video recorders may use SD cards rather than CF cards in order to save space.

Like any flash-based storage card, a CF card is subject to some basic limitations. CompactFlash cards have a limited overall lifetime before writing fresh data to them becomes impossible. This has improved over the life of the format, with modern cards offering up to one million rewrites. Physical or electrical damage can corrupt data stored on CF cards, making CF data recovery tools important for many users.

As with some other flash storage cards, CompactFlash cards can be corrupted when a device with a failing battery attempts to store data on them. Corrupted cf card recovery requires specialized software tools, and a degree of electronics skill may be required to get usable data out of a card that’s been physically damaged. A professional with plenty of CF recovery experience can practically work miracles.

Major Manufacturers In The Compact Flash Market

As noted above, the original CompactFlash cards were created by SanDisk, and that company is still an industry leader in the CF card market. Other producers of note include storage media specialists like Verbatim, Kingston, Transcend, and Cisco. Canon produces a line of CF cards to go with its premium cameras. (These particular cards are rather expensive, though, and Canon CF card recovery is often performed to try and salvage the cards rather than abandon them.)

There is unfortunately a rather wide range of counterfeit CompactFlash cards on the market today. Counterfeit cards are often manufactured to very low standards, and they’re frequently advertised for larger storage capacities than they actually possess. Users should stick to buying cards from reputable suppliers in order to avoid counterfeit media.

While CompactFlash, like any storage format, has its limitations, it has definitely proved to be an extremely durable design. Ever since its introduction, CompactFlash has been an integral part of the world of digital photography, and the people who rely on CF cards go far beyond photographers. These chunky but reliable memory cards are likely to stick around for many more years to come.

Data Recovery Issues With Compact Flash Cards

SERT data recovery and CF cards are old friends. Thanks to the format’s two-decade history, a our engineers experts are very familiar with physically re-wiring damaged cards to gain access to your data. To recover CF card data, it’s sometimes necessary to engage in very careful, time-consuming wiring work. This can sometimes make it prohibitively expensive to recover data in some cases.

CF card data recovery doesn’t necessarily require soldering and re-pinning, though. In a lot of cases where power fluctuation during data storage is the root cause of failure, free Compact Flash recovery software is enough to regain access to the information on the card. Corrupt CF Card recovery is a very straightforward process when the right software tools are used.

Users who need programs like this need to exercise caution and common sense, though. Compact Flash card recovery programs are heavily favored as Trojan horses designed to deliver viruses or malware to users’ computers. All free Compact Flash card recovery software should be investigated carefully before installation. Third-party endorsements of a particular program’s effectiveness are required.
